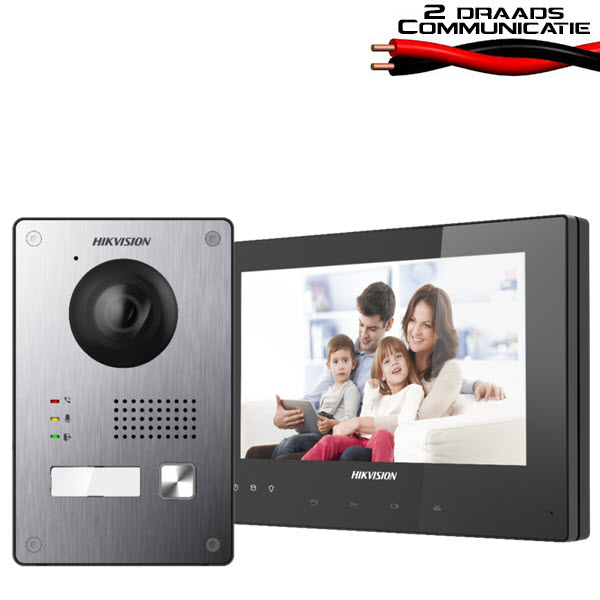

Hikvision DS-KIS701(OSTD)/EU, 2-draads Video Intercom Kit
DS-KIS701(OSTD)/EU-B, 2-draads Video Intercom Kit Zwart
Artikelnr: | 980803 |
Eenheid: | 1 |
|
Dit product kan niet worden toegepast in combinatie met de 2e generatie Hikvision intercom producten. |
Inhoud Hikvision 2-wire intercom kit:
- Hikvision Indoor station (DS-KH8340-TCE2)
- Hikvision Door station (DS-KV8103-IME2)
- Hikvision Video/Audio Distributor (DS-KAD709)
Raadpleeg voor alle details de Datasheet onder Documenten/Folders in de Download-tab.
Specificaties Binnenpost (DS-KH8340-TCE2):
Beeldscherm | Scherm | 7-inch kleur TFT LCD Touchscreen |
Beeldschermresolutie | 1024x600 | |
Video compressie | H.264 | |
Geluid | Audio in | Ingebouwde microfoon |
Audio uit | Ingebouwde luidspreker | |
Geluidskwaliteit | Ruis en echo onderdrukking | |
Algemeen | Voeding | 24VDC via (DS-KAD709) verbruik max. 10w |
Werktemperatuur | -10 ~ +55 | |
Maximale luchtvochtigheid | 10% tot 90% | |
Mobiele app | Hik-Connect | |
Afmetingen | 196mm x 133mm x 25.75mm |
Specificaties Hikvision Buitenpost (DS-KV8103-IME2)
Camera | Camera | CMOS Low Illumination 2 MP HD Kleurrijke 155° Fisheye Camera |
Video compressie | H.264 | |
Resolutie | 1920x1080 | |
Video frame rate | PAL: 25fps | |
Geluid | Audio in | Ingebouwde microfoon |
Audio uit | Ingebouwde luidspreker | |
Algemeen | Materiaal | RVS |
Voeding | 24VDC via (DS-KAD709) verbruik max. 12w | |
Werktemperatuur | -30 ~ +60 | |
Maximale luchtvochtigheid | 10% tot 90% | |
Waterdichtheid | IP65 | |
I/O uitgang | 1-ch 12VDC | |
I/O Ingang | 2 | |
Deurstand signalering | 1 | |
Afmetingen | 163mm x 104mm x 44mm |
Specificaties Hikvision Video/Audio Distributor (DS-KAD709)
Algemeen | Voeding | 24VDC 2.5A |
Verbruik | max. 60w | |
Werktemperatuur | -10 ~ +55 | |
Maximale luchtvochtigheid | 10% tot 90% |
